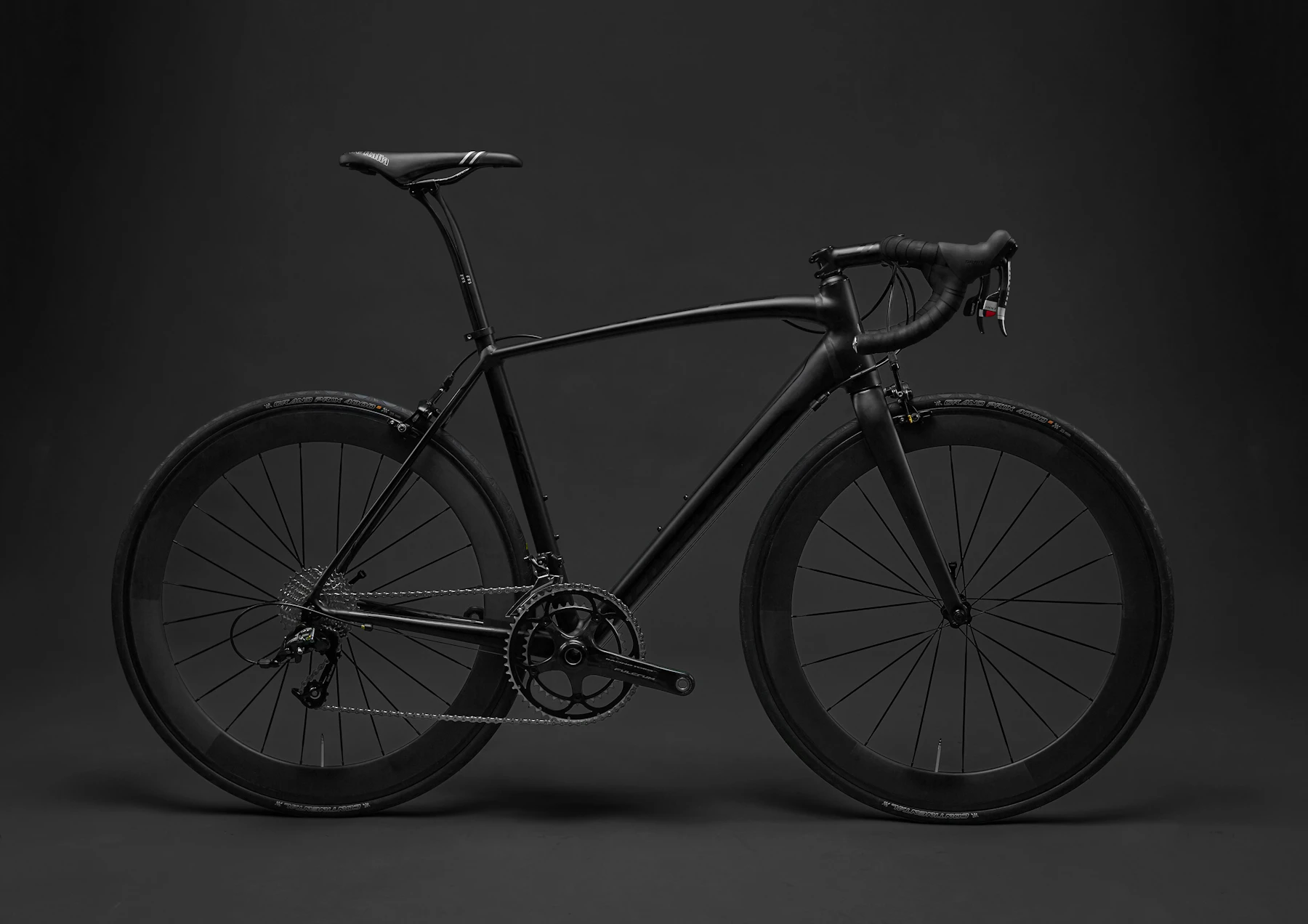

A black carbon road bike in profile against a dark wall
6.84kg
as built · size 56 · pedals off

Weight is a decision.

Every gram on the build sheet is one you chose.Carbon road frames, built to order in eight weeks. We don't hide the weight in a footnote; we put it on the top tube, and we show you where it went.

Start a build
01 · The build sheet

Where the grams go.

0g
running total · size 56
FrameNine · T800 carbon · 56
790 g
ForkFull carbon, tapered
340 g
Wheels45 mm carbon, tubeless, pair
1,310 g
GroupsetElectronic, 2×12, discs
2,180 g
Tyres28 mm, pair, sealant in
560 g
Bar and stemOne-piece carbon
380 g
SaddleCarbon rails
150 g
Everything elsePost, cages, tape, bolts, hoses, bearings
1,130 g
Same bike, 240 g lighter: shallower wheels, mechanical shifting, a firmer saddle.+ £0. Your decision, not ours.
02 · Layup

Fourteen plies. Three angles.

Carbon is only as stiff as the direction the fibre runs. We lay it by hand, one sheet at a time, at the angle each part of the frame needs. Then we sign the inside of the down tube.

0°
Ply 1 of 14 · unidirectional, along the tube
Down tube · section

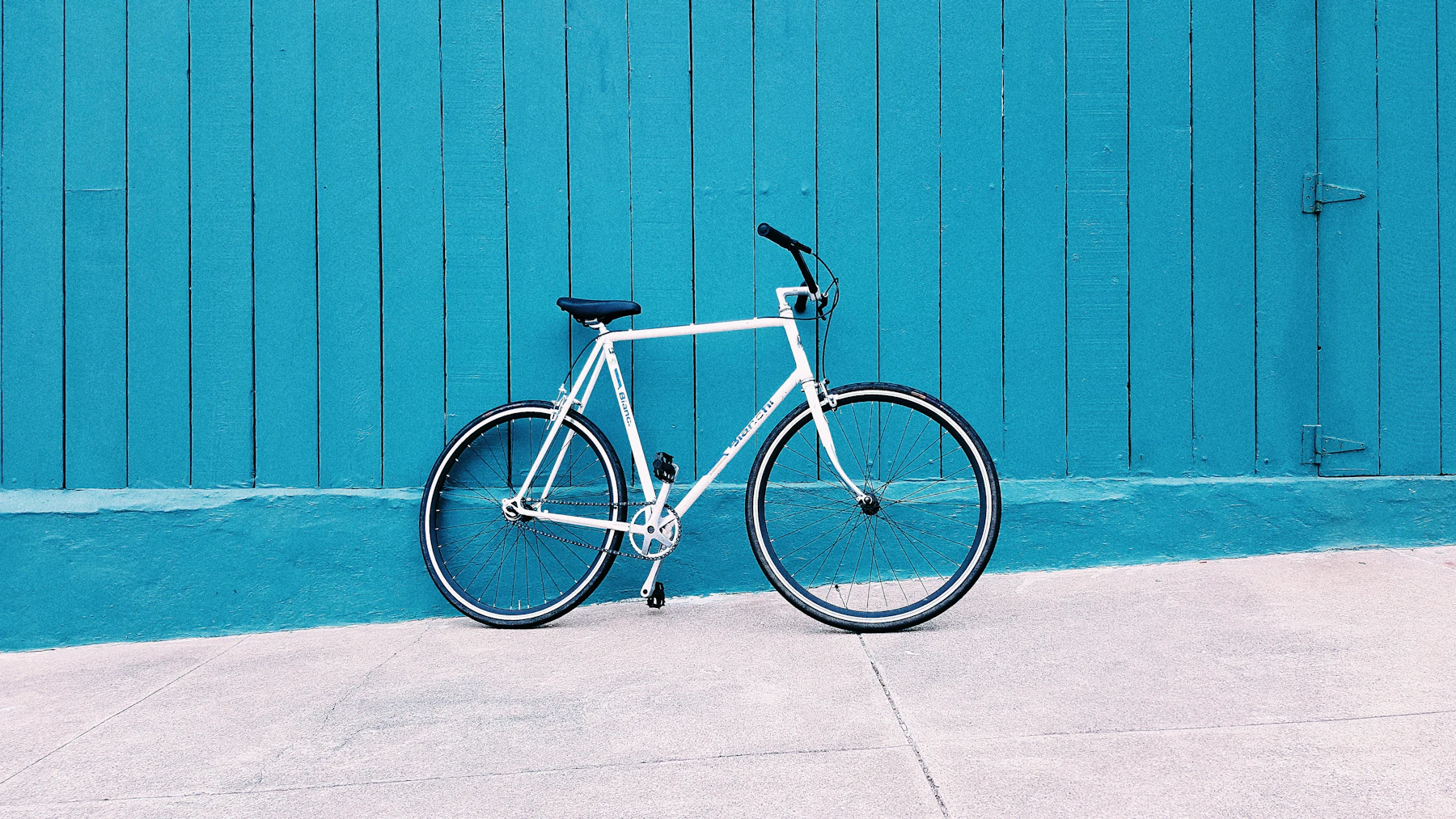

A white road bike leaning against a painted blue wall

Built to order. Eight weeks.

Frame laid up in week one, cured in week two, painted in week five, built in week seven. You get a photograph at each. The eighth week is us riding it, so you don't have to find out anything first.

Builds

Three starting points. One frame.

Every build starts from the same Nine frame. What changes is what you hang on it, and every line can be swapped before we cut a hose.

01 · The light oneClimb
6.6kg

35 mm wheels, mechanical 2×12, carbon everything that can be carbon. For people who count. Size 54.

£7,900
02 · The one most people should buyRoad
7.4kg

45 mm wheels, electronic shifting, 28 mm tyres. Fast enough, comfortable enough, every day. Size 56.

£6,400
03 · The honest oneAll-road
8.1kg

Same frame, 35 mm tyres, a dynamo hub and mounts. Heavier because it carries things. Size 56.

£5,900
Geometry · Nine

Numbers you can check with a tape.

Six sizes. The same handling in all of them, which takes more work than it sounds. The full table, in millimetres, is on the order form.

Stack · 56 · vertical, bottom bracket to head tube top
565
Reach · 56 · horizontal, same two points
388
Head angle · degrees
73.0
Trail · with a 28 mm tyre
58
Chainstay · all sizes
410
Tyre clearance · measured, not claimed
36
Order

Start a build.

Pick a starting point, then argue with every line. We'll send the build sheet with the weight on it before we start, and the actual weight, on a scale, before we ship.

Start a build
